If you’ve worked with Microsoft Dataverse long enough, you’ve probably asked yourself at least once:

“What’s the correct way to connect to Dataverse for this scenario?”

Microsoft documentation covers each scenario individually. But rarely do we see them explained side-by-side with architectural clarity. This series fixes that.

In this first part, we’ll answer one question: Which Dataverse connection method should you use and why?

The Big Picture: Two Core Dimensions

Every Dataverse connection strategy boils down to two decisions:

1. Who is authenticating?
   • A human user?
   • An application (no user involved)?
2. Where is the code running?
   • Desktop?
   • Backend service?
   • Browser?
   • Multi-tenant SaaS?

Once you answer those, the correct pattern becomes obvious.

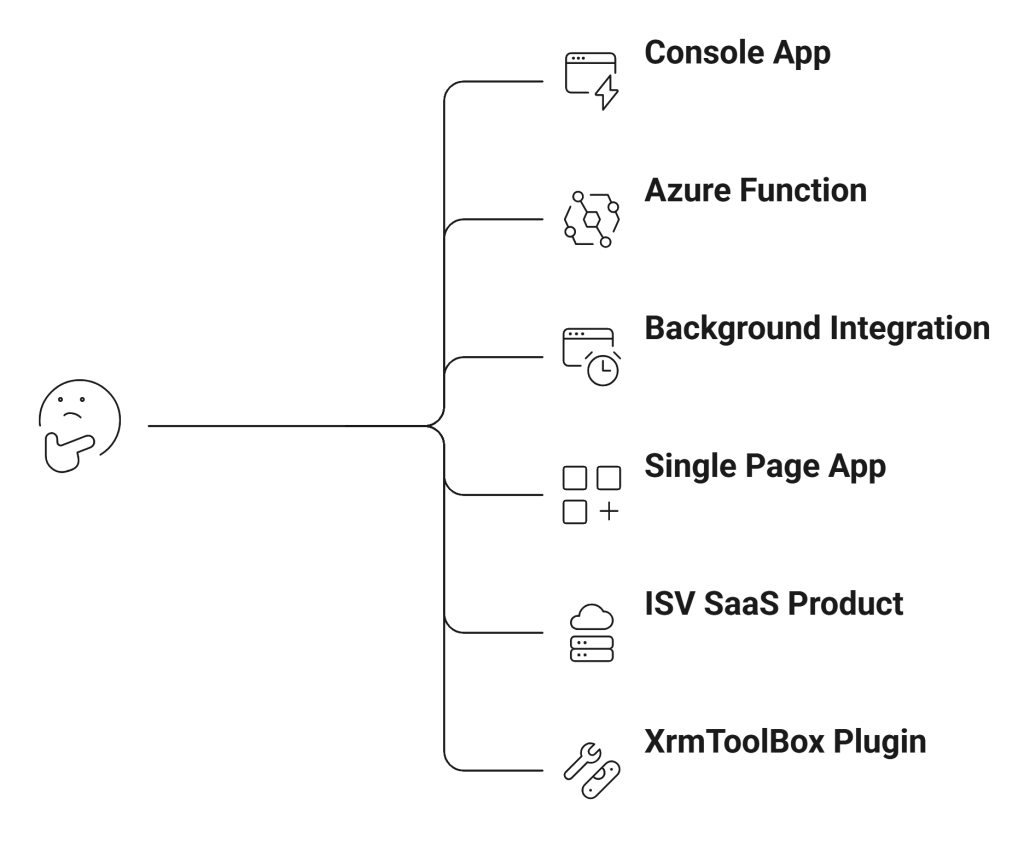

The 5 Modern Ways to Connect to Dataverse

Here’s the simplified landscape.

Let’s unpack each.

1. Delegated User Authentication (Interactive Login)

This is the most common pattern for:

• Console apps
• Dev utilities
• Admin tools
• XrmToolBox plugins
• Migration scripts

Here, the app authenticates as a real user.

How It Works

1. You register an app in Microsoft Entra ID.
2. The user signs in via OAuth.
3. Dataverse issues an access token.
4. The app executes operations using the user’s security roles.

Under the hood:

• The access token contains the user’s identity.
• Dataverse enforces security roles exactly as if the user was inside Model-driven Apps.

When to Use It

Use this when:

• You need user-level permissions.
• You want actions to appear in audit history under a specific user.
• You are building internal tools for admins or consultants.

This is what most developers should start with.

2. Server-to-Server (S2S) Authentication

Now let’s move to the more enterprise-grade pattern.

Server-to-Server means:

The application authenticates without a user.

There is no login prompt. No popup. No interaction.

Instead:

• The application identity itself is trusted.
• Dataverse sees it as an “Application User”.

This is the pattern you use for:

• Azure Functions
• Web APIs
• Background jobs
• Integration pipelines
• Scheduled services
• Data sync engines

How It Works

1. Register an application in Entra ID.
2. Grant application permissions.
3. Create an Application User inside Dataverse.
4. Assign security roles to that application user.
5. Authenticate using Client Secret or Certificate.

Important concept:

Dataverse does not treat the app as a system superuser.

You must explicitly assign roles to the application user just like a normal user.

3. Single-Tenant vs Multi-Tenant S2S

This is where many architects get confused.

Single-Tenant S2S

• App only works inside your organization.
• One Azure AD tenant.
• Used for internal enterprise integrations.

Example:

• Your company builds a middleware service that syncs ERP and Dataverse.

Multi-Tenant S2S

• App serves multiple customer tenants.
• ISV or SaaS product.
• Each customer grants consent.
• Each environment needs an Application User configured.

Example:

• You publish a Dataverse automation product on AppSource.
• Customers install and grant permissions.

This pattern is significantly more complex and requires onboarding automation and tenant consent flows.

4. SPA (Single Page Application) + CORS

This is the modern browser-only pattern. No backend. No proxy server.

The browser:

• Uses MSAL to authenticate.
• Gets an OAuth access token.
• Calls Dataverse Web API directly.
• Dataverse allows it through CORS configuration.

This is ideal for:

• React apps
• Angular dashboards
• Internal portals
• Lightweight admin panels

Key constraints:

• Only delegated user permissions (not application permissions).
• The logged-in user must have security roles in Dataverse.
• Token acquisition must be handled carefully.

This approach eliminates the need for a custom backend just to relay API calls.

5. XRM Tooling & Legacy Patterns

Historically, we had:

• WS-Trust authentication
• Office365 auth type
• Older CrmServiceClient patterns

These are deprecated. If you still see:

AuthType=Office365

It’s time to migrate. Modern Dataverse authentication is OAuth-based always.

A Practical Decision Framework

Let’s make this concrete.

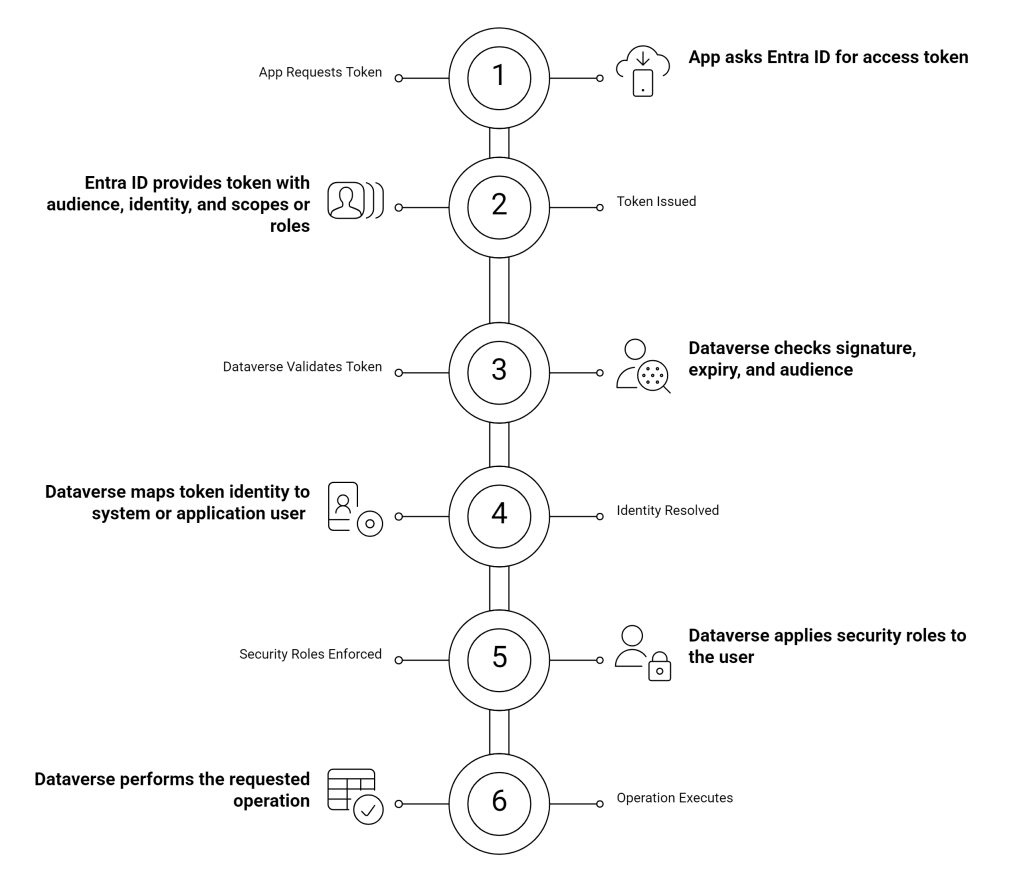

Security Model Deep Dive (What Actually Happens)

When you call Dataverse:

Understanding this flow is critical. Because every authentication method in this series simply changes how the token is acquired not how Dataverse enforces security.

The Most Common Mistakes I See

After years in Dynamics and Power Platform projects, here are the recurring anti-patterns:

• Using delegated login for background jobs.
• Giving System Administrator to application users “just to make it work”.
• Not creating an Application User after app registration.
• Confusing multi-tenant app registration with Dataverse environment configuration.
• Leaving old Office365 auth in legacy tools.

Authentication mistakes lead to:

• Security gaps
• Broken production integrations
• Conditional Access failures
• Token expiry runtime crashes

Choosing correctly upfront saves pain later.
