If you’ve worked with older Dynamics 365 or CRM SDK codebases, you’ve probably seen this:

AuthType=Office365

Or worse silent authentication failures after Microsoft tightened security policies.

This post explains:

• Why legacy authentication was deprecated
• What breaks in old solutions
• How to migrate safely
• How to modernize your tooling

If you’re maintaining older code, this post matters.

Why Office365 / WS-Trust Was Deprecated

Historically, Dynamics CRM used:

• WS-Trust
• Username + password authentication
• Basic auth flows

These approaches:

• Did not support MFA properly
• Broke under Conditional Access policies
• Were less secure
• Relied on older identity protocols

Modern Dataverse uses:

OAuth 2.0 + OpenID Connect via Microsoft Entra ID

Everything in this series Delegated, S2S, SPA is built on OAuth.

Legacy auth is no longer supported in secure environments.

What Breaks in Legacy Code

You’ll typically see errors like:

• “Ws-Trust authentication is deprecated”
• “User authentication failed”
• MFA prompts that never resolve
• Conditional Access failures
• AADSTS errors

If your connection string looks like this:

AuthType=Office365;
Username=user@domain.com;
Password=plaintextpassword;
Url=https://yourorg.crm.dynamics.com;

That is outdated. It must be replaced.

Migration Strategy Overview

There are two paths depending on your scenario:

The key question: Is this user-based or application-based? That determines the replacement.

Migrating to Modern OAuth (Delegated)

If your tool was:

• A console app
• A migration script
• An admin utility

Replace old connection string with:

string connectionString =
    "AuthType=OAuth;" +
    "Url=https://yourorg.crm.dynamics.com/;" +
    "ClientId=YOUR-APP-ID;" +
    "RedirectUri=http://localhost;" +
    "LoginPrompt=Auto;";

Steps:

1. Create App Registration
2. Add SPA or public client redirect URI
3. Add delegated permission:
   • user_impersonation
4. Grant consent
5. Remove stored passwords from code

This immediately makes your tool compatible with:

• MFA
• Conditional Access
• Security policies

Migrating Background Services to S2S

If your legacy code ran without user interaction and used stored credentials: You must migrate to Client Secret or Certificate authentication.

Replace:

AuthType=Office365
Username=...
Password=...

With:

AuthType=ClientSecret;
Url=https://yourorg.crm.dynamics.com;
ClientId=YOUR-APP-ID;
ClientSecret=YOUR-SECRET;

Then:

1. Add application permissions
2. Create Application User in Dataverse
3. Assign security roles

No more passwords.

Why You Should Prefer Certificates Over Secrets

Secrets:

• Expire
• Can leak
• Must be rotated

Certificates:

• More secure
• Better for enterprise environments
• Preferred for production

Certificate connection example:

AuthType=Certificate;
Url=https://yourorg.crm.dynamics.com;
ClientId=YOUR-APP-ID;
Thumbprint=YOUR-CERT-THUMBPRINT;

For long-running production systems, certificates are strongly recommended.

Updating Old CrmServiceClient Code

Older projects may use:

CrmServiceClient

That’s still supported but the auth mechanism must change.

Instead of:

AuthType=Office365

Use:

AuthType=OAuth

Or:

AuthType=ClientSecret

The class may stay the same the auth type changes.

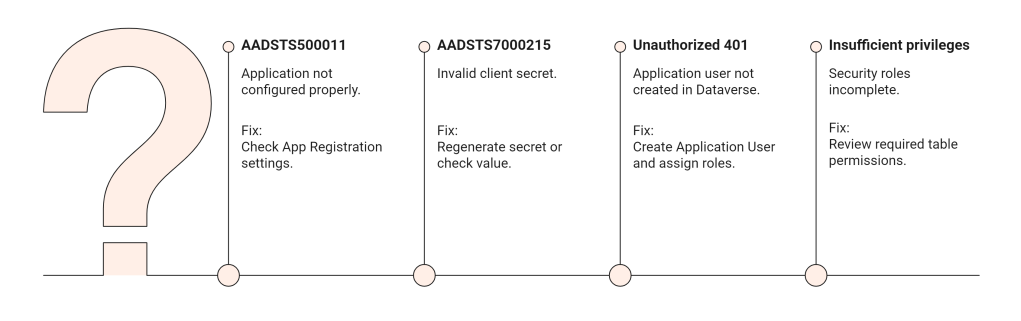

Common Migration Errors
